Types of Oil Filters: Explained With Functions, Working Principle, and Advantages

Oil filters are essential for maintaining the cleanliness and efficiency of internal combustion engines. Designed to remove impurities, contaminants, and debris from engine oil, they ensure that only clean, filtered oil circulates through engine components. Various types of oil filters are available to meet different engine needs, including spin-on, cartridge, magnetic, and centrifugal filters. Each type offers distinct features and benefits, making them suitable for specific applications.

Types of Oil Filters

Oil filters play a crucial role in maintaining engine health by removing contaminants from lubricating oil. There are several types, including spin-on filters, cartridge filters, magnetic filters, and centrifugal filters. Spin-on filters are widely used in cars for their ease of replacement, while cartridge filters consist of a replaceable element housed within a casing. Magnetic filters capture metal particles using a magnetic field, and centrifugal filters rely on centrifugal force to separate contaminants. Each type is designed to effectively maintain engine cleanliness and ensure smooth operation.

Full-Flow Oil Filter

Also known as a primary oil filter, the full-flow oil filter is the most commonly used type in cars. It efficiently removes impurities from all the engine oil, ensuring proper lubrication and optimal engine performance. This filter is particularly beneficial in colder temperatures, preventing oil thickening during cold starts while allowing oil to flow freely through the engine.

Cartridge Oil Filter

The cartridge oil filter is a variation of the full-flow filter, designed for easy inspection without requiring oil removal. It is typically mounted upright and comes in metal or fiber variants, with fiber filters being preferred for their recyclability.

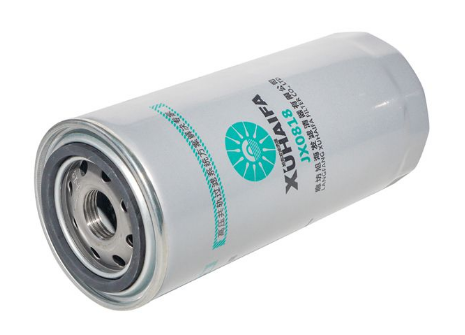

Spin-On Oil Filter

The spin-on oil filter features a steel canister housing a paper element. Known for its ease of installation and minimal tool requirements, it is a user-friendly option that allows car owners to replace it with minimal effort.

Secondary or By-Pass Oil Filter

Used alongside full-flow filters, secondary oil filters provide additional filtration by removing contaminants that the primary filter may miss. By purifying a small portion of engine oil, they help extend oil life and enhance engine protection.

Spinner Oil Filter

A type of secondary filter, the spinner oil filter utilizes centrifugal force to remove contaminants from engine oil. Some models can generate forces exceeding 2,000 times that of gravity, effectively eliminating even the smallest impurities.

Magnetic Oil Filter

Like the spinner oil filter, the magnetic oil filter works as a secondary filtration system alongside a full-flow filter. It specifically targets metallic contaminants but does not remove dust or grime. Magnetic filters do not require replacement, needing only periodic cleaning to maintain efficiency.

What is an Oil Filter?

An oil filter is a mechanical device that removes contaminants, dirt, and unburned fuel from the circulating oil in an engine. Its primary function is to ensure that only clean oil reaches the engine, preventing wear and maintaining optimal performance. Regular maintenance or replacement of the oil filter is crucial for preserving engine efficiency and longevity.

In the early days of engine production, oil filters were either nonexistent or of poor quality, requiring frequent oil changes. This issue was addressed with the development of the first full-flow oil filtration system, which ensures that oil passes through the filter before reaching the engine’s moving components.

Beyond automotive engines, oil filters are widely used in hydraulic systems, such as automatic transmissions and power steering. They also play a critical role in gas turbine engines, including those in aircraft. From cars, trucks, and motorcycles to boats, airplanes, and tractors, oil filters are essential for maintaining clean oil circulation and ensuring the smooth operation of engines and machinery.

Functions of an Oil Filter

Oil filters play a crucial role in engine protection by performing the following functions:

- Contaminant Removal: Engines generate dirt, dust, metal debris, and combustion residues. Oil filters effectively trap these contaminants, preventing them from circulating within the engine.

- Consistent Engine Performance: Clean engine oil is essential for optimal performance. A well-maintained oil filter ensures a steady supply of purified oil, allowing the engine to run smoothly and efficiently.

- Prevention of Oil Thickening: Over time, soot and impurities can cause oil to thicken, hindering proper engine function. Oil filters help regulate oil flow and prevent excessive thickening, ensuring smooth lubrication.

- Protection of Moving Parts: Critical engine components, such as connecting rods, camshafts, and the valvetrain, are susceptible to wear from contaminants. An effective oil filter safeguards these parts, prolonging their lifespan and enhancing engine durability.

Working Principle of an Oil Filter

Oil filters operate using a simple yet effective mechanism. As oil enters the filter through small holes in the base flange, it flows through the filtration media, where contaminants are trapped. The cleaned oil then exits through a larger center hole, returning to the engine for lubrication.

Modern oil filters often include an anti-drain-back valve, typically a rubber membrane positioned at the perimeter holes of the base flange. This valve opens when oil enters under pressure and closes when the engine is off, preventing oil from draining out and reducing the risk of dry starts—where the engine runs momentarily without lubrication.

Additionally, many modern internal combustion engines feature a secondary (bypass) oil filter for extra protection. This filter allows oil to bypass the main filter under certain conditions, such as extreme cold when oil thickens or when the primary filter becomes clogged. By ensuring uninterrupted lubrication, the bypass filter helps prevent engine damage and ensures reliable performance in challenging conditions.

Advantages of Oil Filters

Oil filters provide several key benefits that contribute to engine efficiency and longevity:

- Effective Contaminant Removal: They efficiently trap dirt, debris, and impurities, ensuring clean oil circulation.

- Extended Engine Life: By preventing abrasive particles from causing wear, oil filters help protect vital engine components.

- Improved Performance: Clean oil ensures proper lubrication, allowing the engine to operate smoothly and efficiently.

- Enhanced Fuel Efficiency: A well-lubricated engine runs more efficiently, leading to better fuel economy.

- Optimal Oil Pressure Maintenance: Oil filters help regulate oil pressure, reducing the risk of engine failure.

- Reduced Emissions: By maintaining engine health, oil filters contribute to cleaner exhaust gases and lower emissions.

Disadvantages of Oil Filters

Despite their benefits, oil filters have some limitations:

- Clogging Over Time: As contaminants accumulate, the filter can become blocked, restricting oil flow and potentially damaging the engine.

- Variable Filtration Efficiency: Low-quality or inefficient filters may not effectively remove all harmful particles.

- Limited Capacity: Some filters require frequent replacement due to their small contaminant-holding capacity.

- Increased Maintenance Costs: High-quality or specialized filters can add to vehicle maintenance expenses.

- Potential Engine Issues: Neglected or poorly maintained filters can compromise engine performance and reliability.

- Risk of Oil Leaks: In rare cases, defective or improperly installed filters may lead to oil leaks.

- Environmental Concerns: Certain filters contain non-recyclable materials, posing disposal challenges.

- Compatibility Issues: Using the wrong type or size of oil filter can lead to improper fitment and engine damage.

- Oil Flow Restriction: Some filters may excessively restrict oil flow, reducing oil pressure and affecting engine performance.
