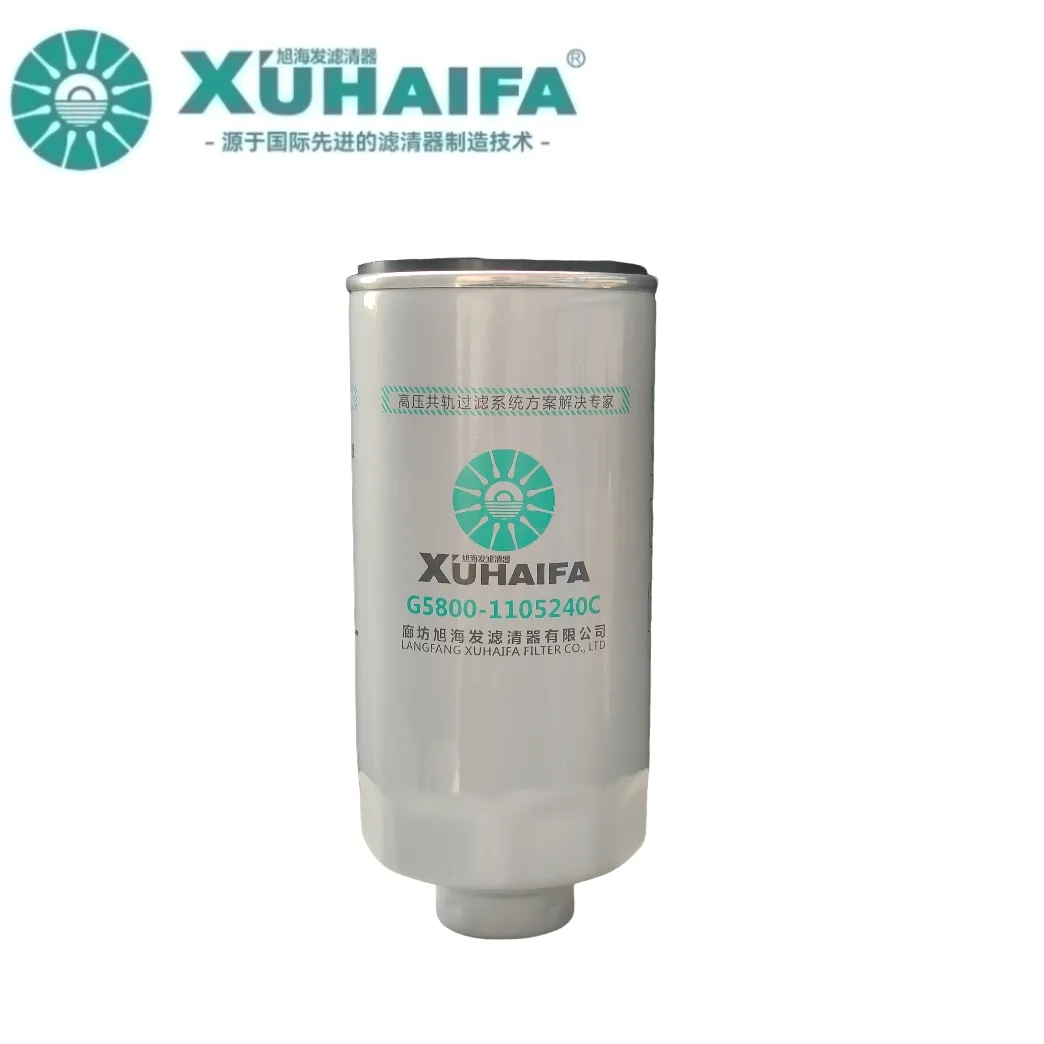

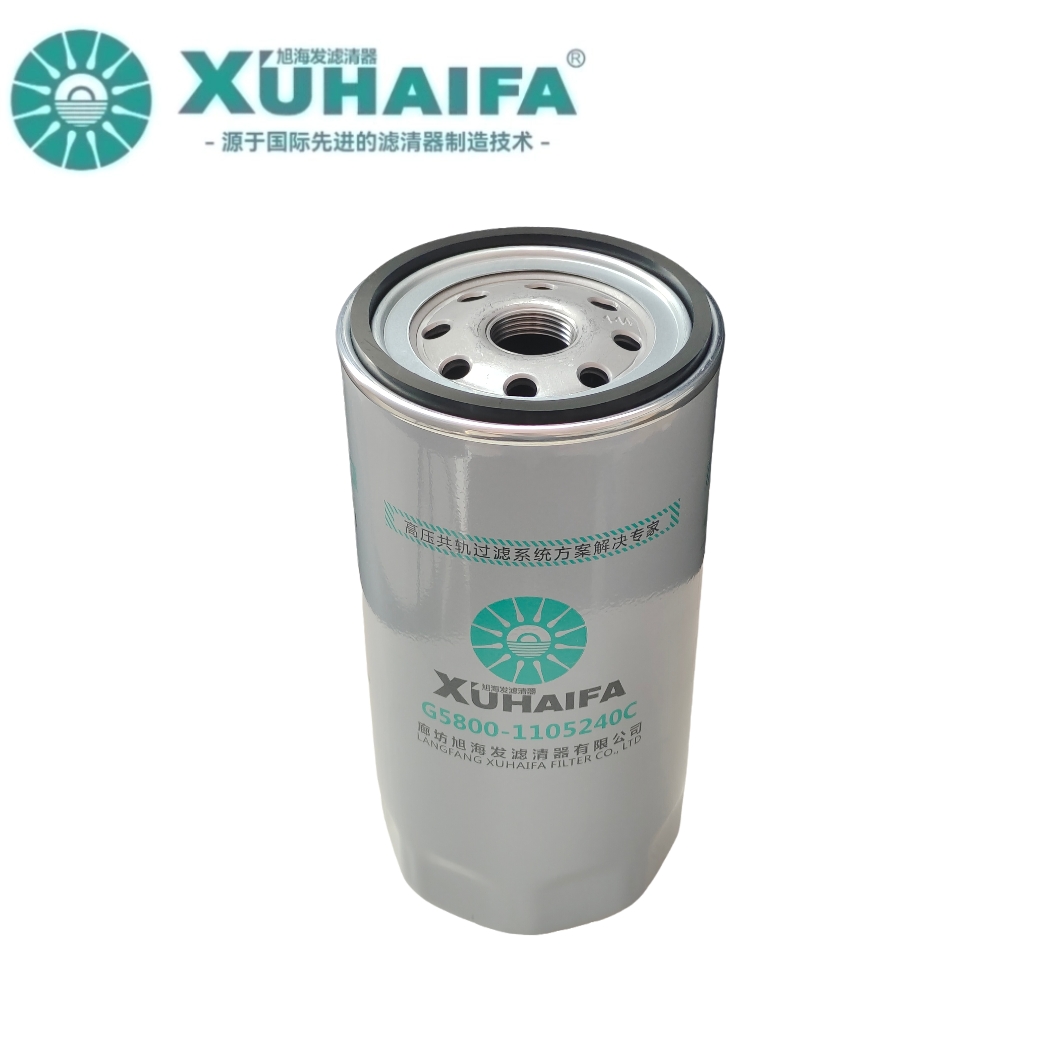

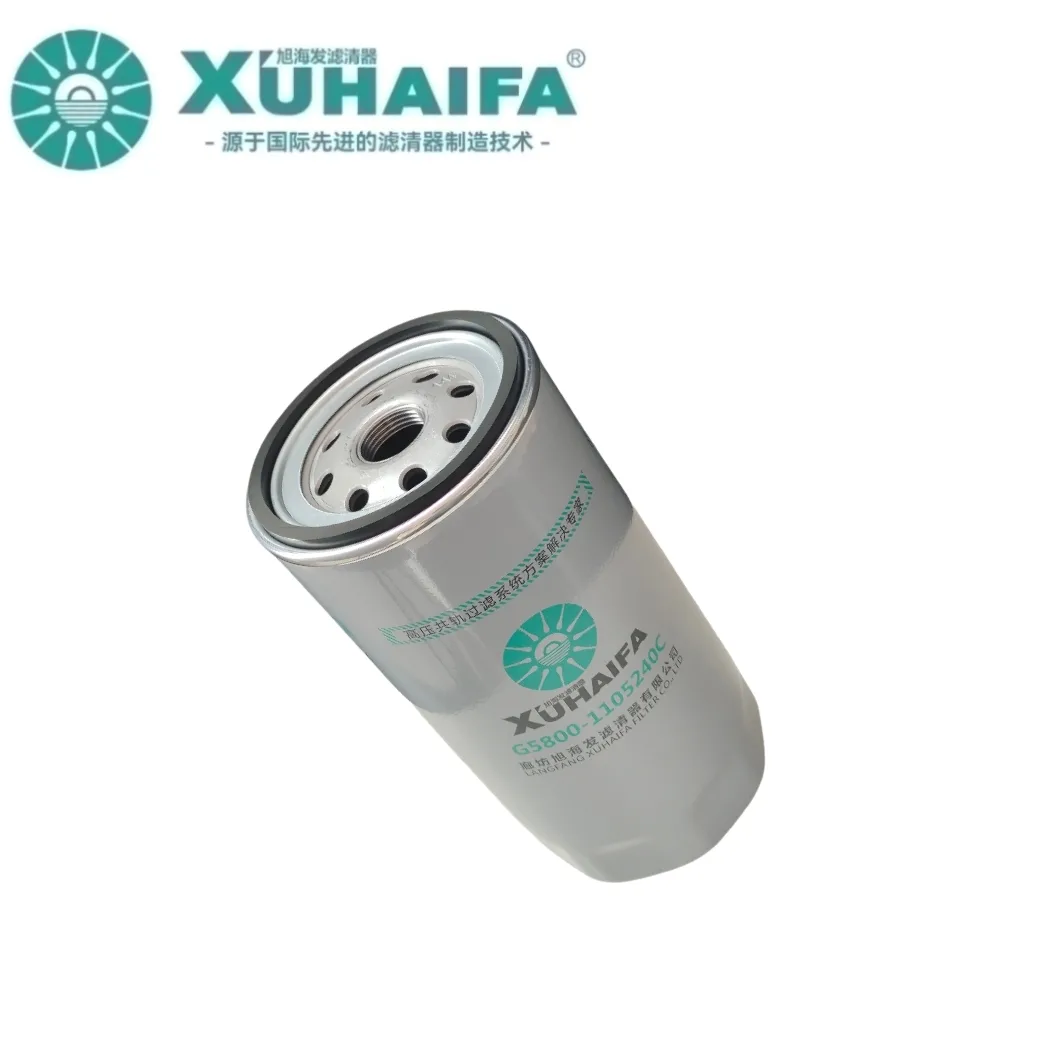

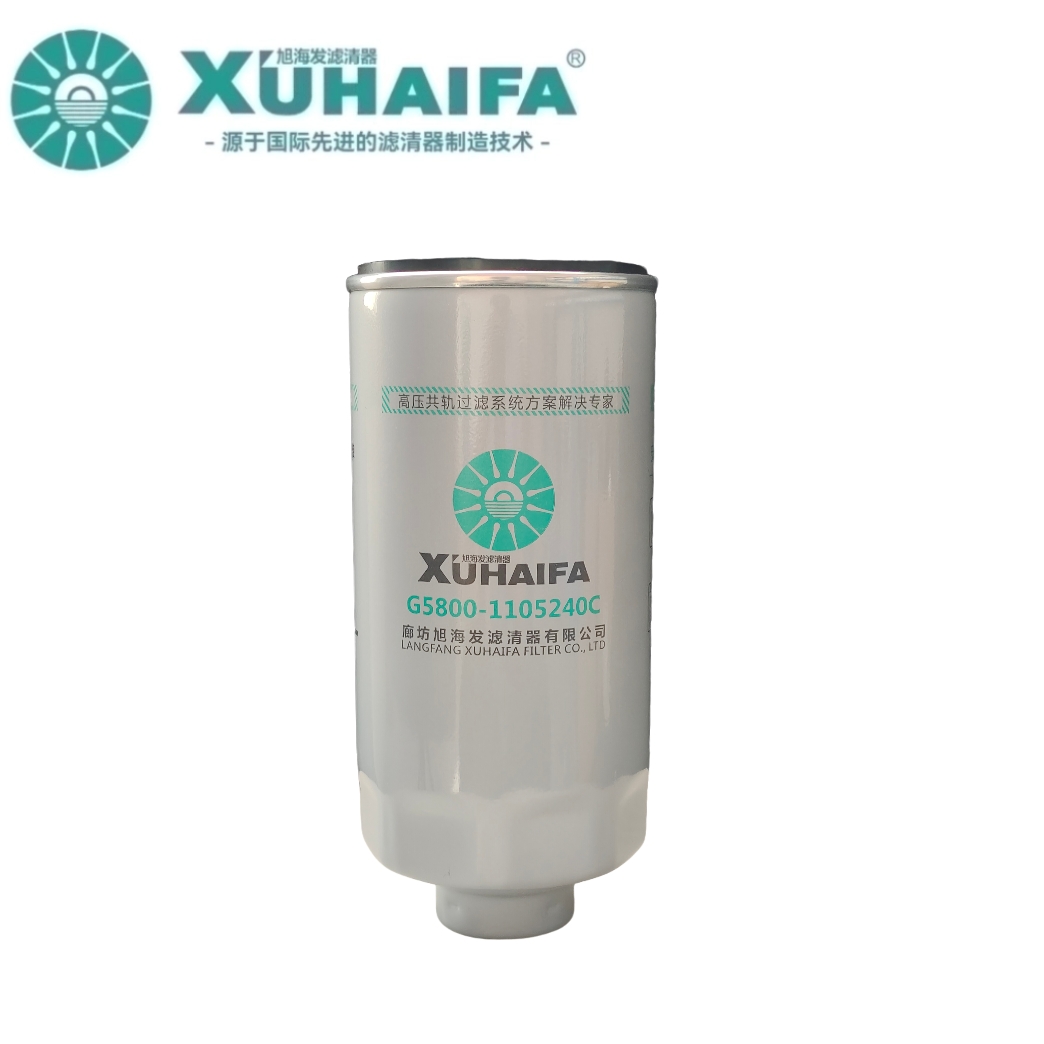

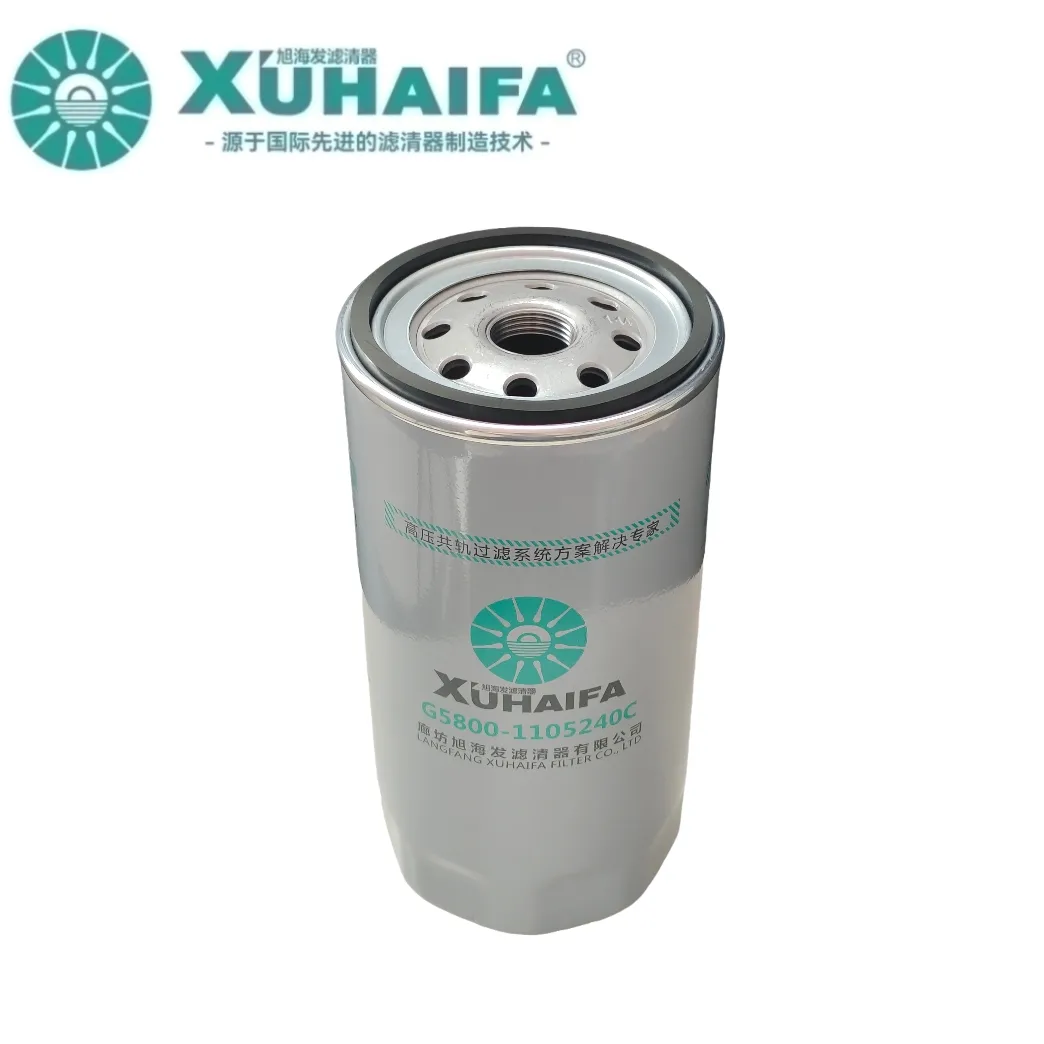

G5800-1105240C Fuel Filter

Original Yuchai Engine Diesel Filter Element G5800-1105240C EFI G34 Oil-water Separator Passenger and Cargo

Product Specifications：

Diameter: 110mm

Height: 285mm

Connection Thread: 1"-14UNS

Inquire Now Next Product

G5800-1105240C Fuel Filter Specifications

Product Model	G5800-1105140C
OEM Number	23390-E0020 / CX1018 / VG1540080110 / LC21P01019R100C / 860126527 / 47530277 / 1117050F033 / 23390E0020 / 23390E0050 / 1117-00286 / 1117010-E4200 / 1012010014 / 60310823
Cross Reference Number	CX1020 / CLX263 / D628-002-802A / D638-000-802A+A / P502466 / 23390-E0020 / L6500-1105140 / L6500-1105100 / 2001228 / 2010110 / LC2MA-1105140 / 5801578912 / T9000-1105140 / F0001-G / 151110500001AA0A / F1088-046 / D5010224734 / W800000005 / A5800-1105140C-F / S00001498+03 / CLX-616 / A70000-1105140 / S00024912+02 / 1117050-F033 / T750010020
Applicable Brands	Dongfeng, FAW Jiefang, JAC, Foton, Liuzhou, Yutong
Applicable Models	Dongfeng Duolika, Dongfeng Capte, Dongfeng Furika, Dongfeng Tuyi and other Dongfeng light trucks, Chenglong buses, models with Yuchai YC6G240-30 engine, some Ward harvesters
Engine Type	Six-cylinder fuel injection engine
Product Size (OD*H)	110mm * 208mm
Thread Size	1"-14UNS
Filtration Accuracy	5 μm
Recommended Replacement Mileage	30,000 – 60,000 km
Customization Support	Support customized packaging

If you are interested in one of our products and unsure of what you need, please contact us quickly and we will provide you with a free solution

Packaging and transportation

Water transport

If the filter needs to be transported long distances across borders or regions, and the volume of transportation is large, water transportation may be a suitable way. The cost of water transportation is relatively low, but the transportation time is longer and is more affected by weather and sea conditions. When choosing water transportation, pay attention to choosing the right route and shipping company, and carry out moisture-proof and waterproof packaging treatment on the filter.
